KATANA

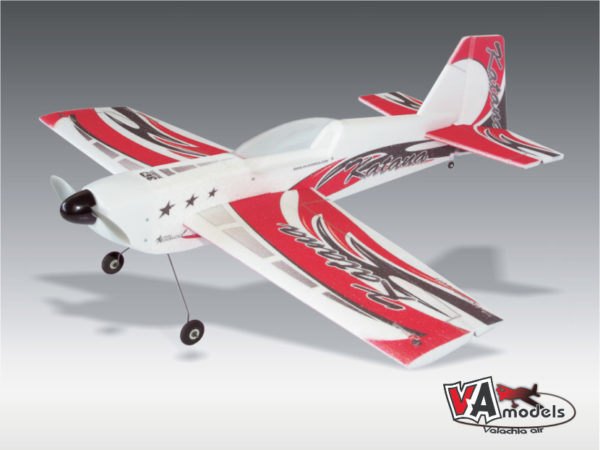

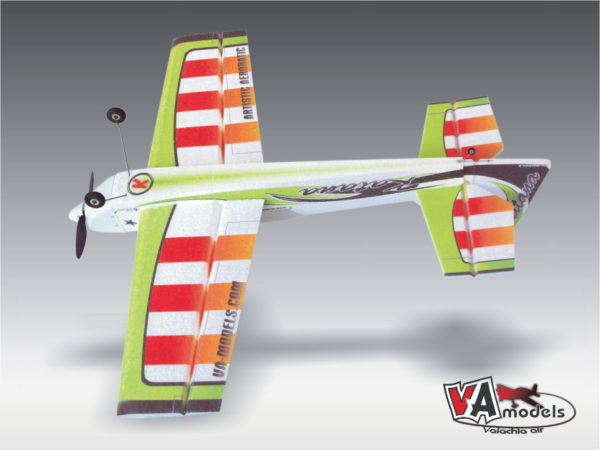

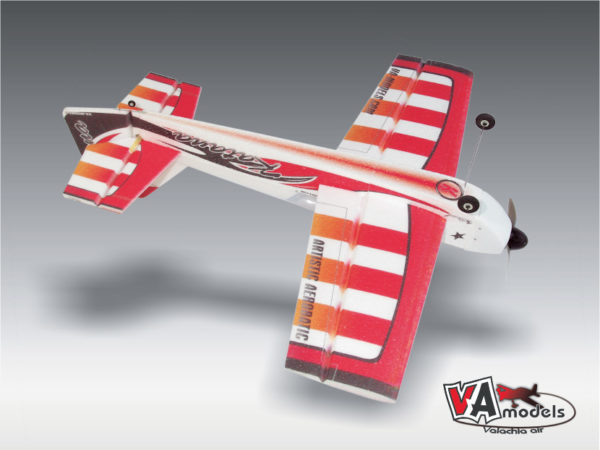

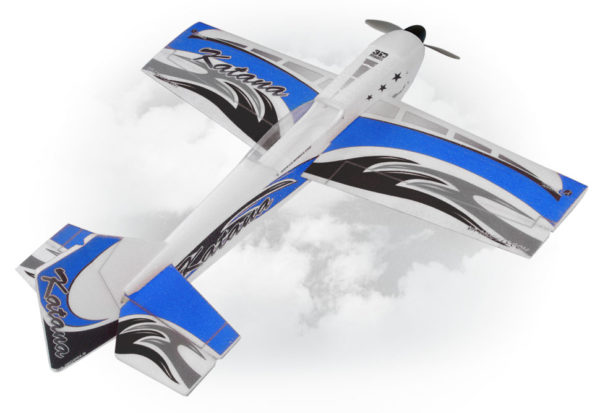

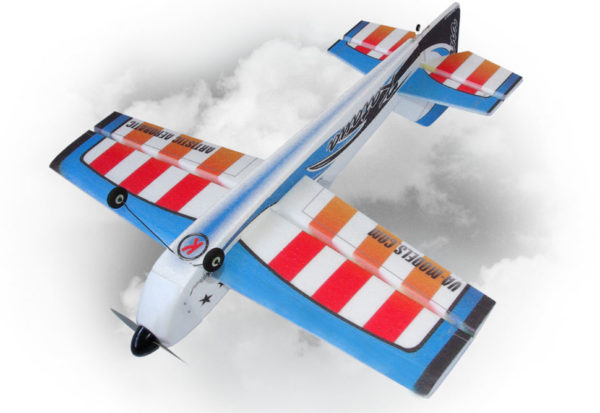

Semi-scale model of aerobatic special KATANA with a very realistic appearance and attractive graphic design by airbrush printing. 3 colour variations

Wingspan 1010 mm
Lenght 1020 mm
Weight 580-650 g (dep. on the RC equipments)
Sevos 4
Material EPP
Functions Rudder, Elevator, Ailerons, Motor
Level ARF

ARF

High level of pretreatment, completion time 2-3 hours

Complete kit

The kit contains all the necessary pieces and jewelery

UV Printed

All parts of the model in the selected color scheme

Description:

Semi-scale model of aerobatic special KATANA with a very realistic appearance and attractive graphic design by airbrush printing. The plane is produced by CNC technology from EPP material. Katana is a model for those who want an aerobatic plane with fantastic flying, aerobatic characteristics and also a likeable design. It has a wide speed range and pleasant flying behaviour, however Katana is intended primarily for advanced pilots. This model has almost all parts made from EPP and a few parts made from plastic. Fuselage is roomy and all RC components are situated inside the fuselage.

Brushless motor 200-300W, 900-1100ot/V
Propeller (by the engine) 10×4.7″SF, 10×5″, 11×4.7″SF
ESC (speed controller) 25-30A
Servos 4x microservos (+-2,5kg stroke)
Battery Lipol 3S, 1500 – 2300mAh
Adhesives CA + activator, LA
PDF Building instructions

Stavební návod ke stažení

VideoManual

Video building manual
