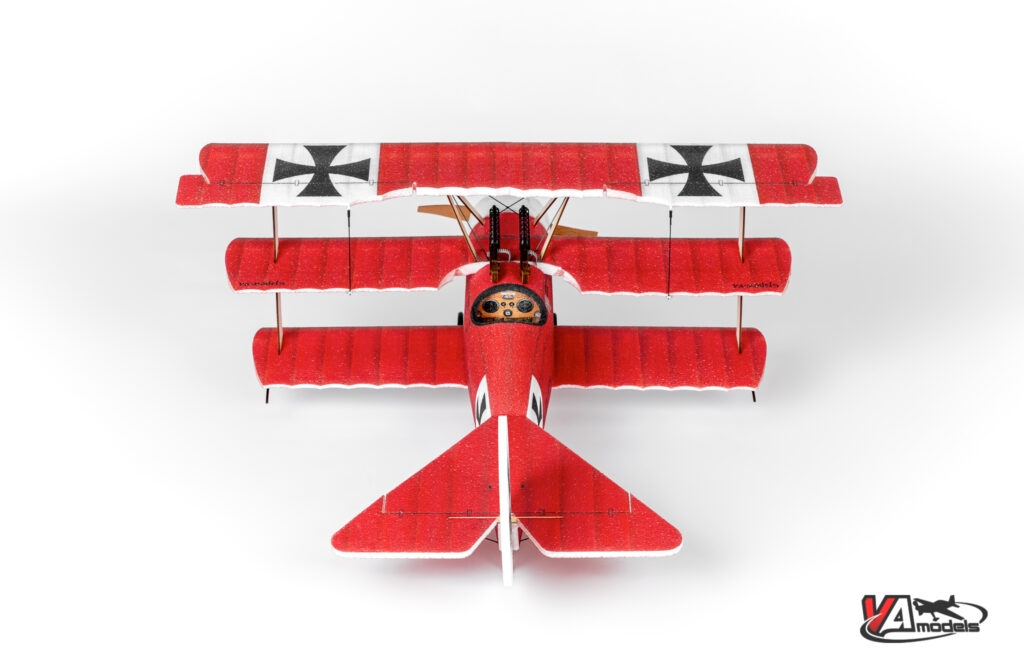

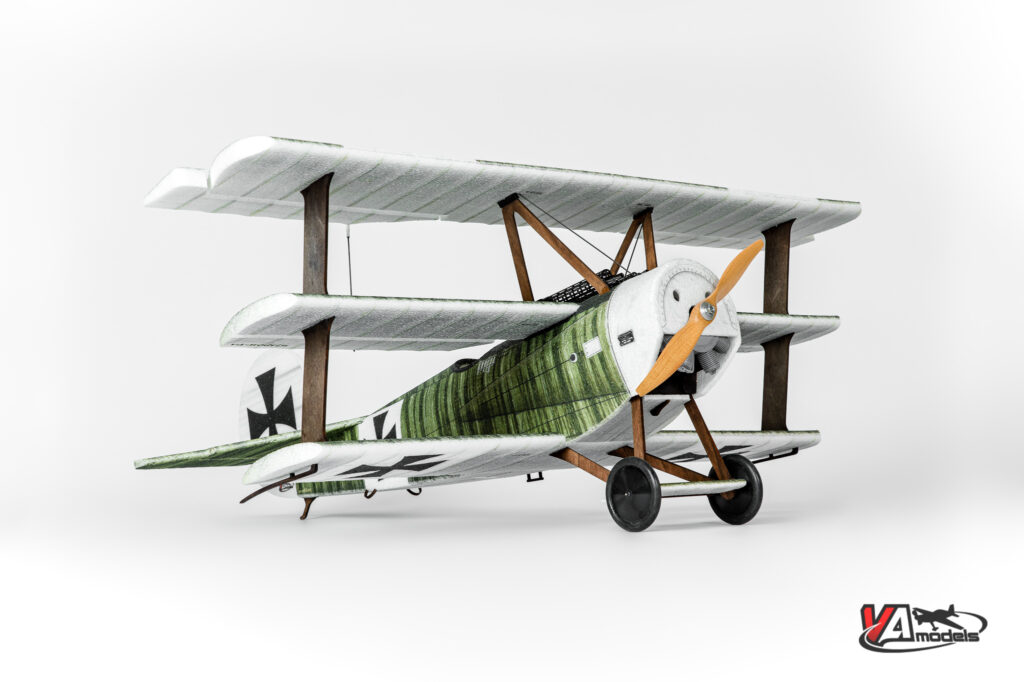

The Fokker Dr.1 V2 is our brand new World War 1 triplane fighter. The model is designed to have as many faithful and mock-up elements as possible, like its real WWI prototype, but at the same time to be a pleasant and tuned model to fly. We believe that more than 2 years of development of the construction and design of the model means the creation of one of our brightest model of our offer!
| Wingspan | 1002 mm |
| Lenght | 960 mm |
| Weight | 850-900 g (dep. on the RC equipments) |
| Servos | 3-4 |
| Material | EPP |
| Functions | Rudder, Elevator, Ailerons, Motor |
| Level | ARF, KIT |
he Fokker Dr.I was a German single-seat triplane fighter aircraft used in World War I. Its designer was Reinhold Platz and it was produced in Anthony Fokker’s factory. It became one of the most famous aircraft of the First World War as the plane of the Red Baron, the German fighter ace Manfred von Richthofen.
This model was in our offer in the past. The popular model, the first version, was produced until 2014, after which we planned to add an aerial adversary, the Nieuport 17, which we have 5 years in our product offer, however, the Fokker model was completely redesigned at the end of 2021 and completed until this year.
The geometry of the model was modified in a compromise way so that the model was as similar as possible to its original, but to be unobtrusive, pleasant and have pleasant flight characteristics.
| Brushless motor | 250-300W, 950-1200ot/V |
| Propeller (by the engine) | 11×4.7″SF, 12×6″, 12×4.7″SF |
| ESC (speed controller) | 35-40A |
| Servos | 3-4x microservos (+-2,5kg stroke) |
| Battery | Lipol 3S, 1800 – 2600mAh |
| Adhesives | CA + activator, StyroGlue |
Building instructions
